    ASME B18.3.1M Metric Socket Head Cap Screws Dimensions

    Metric Series Dimensions for Socket Head Cap Screws

    ASME B18.3.1M standard provides dimensional and technical specifications for metric socket head cap screws, ensuring compatibility in metric-based systems and international applications. It includes details on head size, socket dimensions, thread pitch, and tolerances. This page offers detailed ASME B18.3.1M metric dimensions, along with size charts and engineering references.

    Metric socket head cap screws per ASME B18.3.1M cover M3 through M48 diameters with internal-hex drive geometry. In ASTM A193 Grade B8 material, these are specified where European or globally-harmonised metric procurement is required and where the recessed Allen-drive head supports flush-mount or counterbored installation. ASME B18.3.1M is the SI equivalent of the inch-series B18.3 covered in dimensional detail elsewhere on this site.

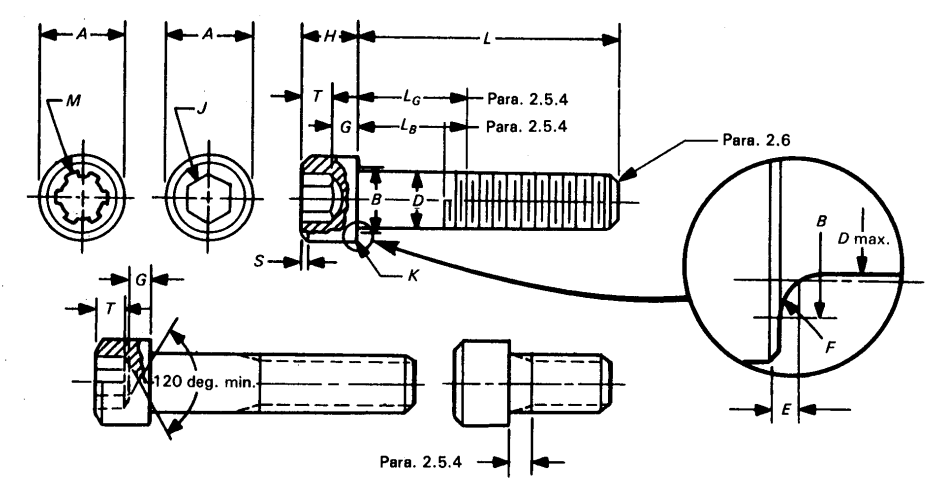

    ASME B18.3.1M Socket Head Cap Screws

    ASME B18.3.1M Metric Socket Head Cap Screws Dimensions

    Nom. Sizeand Thread Pitch Body Diameter, D Head Diameter A Head Height H Chamferor Radius S Hexagon Socket Sizea J Spline Socket Sizea M Key Engagement T Transition Dia. Ba
    Max Min. Max Min. Max Min. Max Nom. Nom. Min. Max
    M1.6 × 0.35 1.6 1.46 3 2.87 1.6 1.52 0.16 1.5 1.829 0.8 2
    M2 × 0.4 2 1.86 3.8 3.65 2 1.91 0.2 1.5 1.829 1 2.6
    M2.5 × 0.45 2.5 2.36 4.5 4.33 2.5 2.4 0.25 2 2.438 1.25 3.1
    M3 × 0.5 3 2.86 5.5 5.32 3 2.89 0.3 2.5 2.819 1.5 3.6
    M4 × 0.7 4 3.82 7 6.8 4 3.88 0.4 3 3.378 2 4.7
    M5 × 0.8 5 4.82 8.5 8.27 5 4.86 0.5 4 4.648 2.5 5.7
    M6 × 1 6 5.82 10 9.74 6 5.85 0.6 5 5.486 3 6.8
    M8 × 1.25 8 7.78 13 12.7 8 7.83 0.8 6 7.391 4 9.2
    M10 × 1.5 10 9.78 16 15.67 10 9.81 1 8 ... 5 11.2
    M12 × 1.75 12 11.73 18 17.63 12 11.79 1.2 10 ... 6 14.2
    M14 × 2b 14 13.73 21 20.6 14 13.77 1.4 12 ... 7 16.2
    M16 × 2 16 15.73 24 23.58 16 15.76 1.6 14 ... 8 18.2
    M20 × 2.5 20 19.67 30 29.53 20 19.73 2 17 ... 10 22.4
    M24 × 3 24 23.67 36 35.48 24 23.7 2.4 19 ... 12 26.4
    M30 × 3.5 30 29.67 45 44.42 30 29.67 3 22 ... 15 33.4
    M36 × 4 36 35.61 54 53.37 36 35.64 3.6 27 ... 18 39.4
    M42 × 4.5 42 41.61 63 62.31 42 41.61 4.2 32 ... 21 45.6
    M48 × 5 48 47.61 72 71.27 48 47.58 4.8 36 ... 24 52.6
    • a See also Table 25.
    • b The M14 ×2 size is not recommended for use in new designs.
    • All dimensions are in millimeters
    • LG is grip length and LB is body length. For length of complete thread.
    • For additional manufacturing and acceptance specifications, see ASME B18.3.1M-1986.
