    ASME B16.5 Pipe Flange Dimensions and Pressure Ratings

    Dimensions, Classes, and Pressure Ratings for Pipe Flanges

    ASME B16.5 Standard defines the dimensions, pressure classes, and specifications for pipe flanges and flanged fittings used in piping systems. It covers flange types, bolt patterns, pressure-temperature ratings, and facing dimensions. Here, you will find complete ASME B16.5 flange dimensions, pressure class tables, and technical data for piping design and installation.

    ASME B16.5 governs flange bolting dimensional requirements (bolt-circle diameter, number of bolts per flange, stud-bolt diameter, and length) for raised-face, ring-joint, and flat-face flange patterns across Class 150, 300, 600, 900, 1500, and 2500 pressure ratings. In ASTM A193 Grade B8 304 stainless, the matched stud-bolt format is double-end with chamfered ends. Companion nut is ASTM A194 Grade 8 (same 304 chemistry, galvanic-compatible). For gasket selection and bolt-load calculations, see ASME PCC-1 (Pressure Boundary Bolted Flange Joint Assembly).

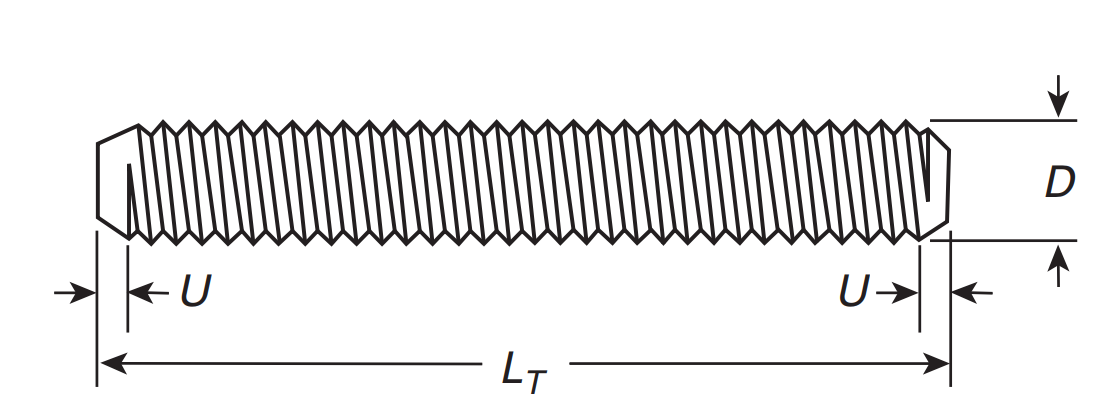

    Continuous And Double End Stud

    ASME B16.5 Pipe Flange Bolting Reference for ASTM A193 B8 Stud Bolts

    ASME B16.5 Pipe Flange Dimensions for Continuous Thread Studs (Inch)

    Nominal Size Diameter, D Chamfered Thread Distance, U
    UNC Threads UNF Threads 8UN Threads
    Min. Max. Min. Max. Min. Max.
    1/4 0.2500 0.050 0.100 0.036 0.071 … …
    5/16 0.3125 0.056 0.111 0.042 0.083 … …
    3/8 0.3750 0.063 0.125 0.042 0.083 … …
    7/16 0.4375 0.072 0.143 0.050 0.100 … …
    1/2 0.5000 0.077 0.154 0.050 0.100 … …
    9/16 0.5625 0.084 0.167 0.056 0.111 … …
    5/8 0.6250 0.091 0.182 0.056 0.111 … …
    3/4 0.7500 0.100 0.200 0.063 0.125 … …
    7/8 0.8750 0.111 0.222 0.072 0.143 … …
    1 1.0000 0.125 0.250 0.084 0.167 … …
    1 1/8 1.1250 0.143 0.286 0.084 0.167 0.125 0.250
    1 1/4 1.2500 0.143 0.286 0.084 0.167 0.125 0.250
    1 3/8 1.3750 0.167 0.333 0.084 0.167 0.125 0.250
    1 1/2 1.5000 0.167 0.333 0.084 0.167 0.125 0.250
    1 5/8 1.6250 … … … … 0.125 0.250
    1 3/4 1.7500 0.200 0.400 … … 0.125 0.250
    1 7/8 1.8750 … … … … 0.125 0.250
    2 2.0000 0.222 0.444 … … 0.125 0.250
    2 1/4 2.2500 0.222 0.444 … … 0.125 0.250
    2 1/2 2.5000 0.250 0.500 … … 0.125 0.250
    2 3/4 2.7500 0.250 0.500 … … 0.125 0.250
    3 3.0000 0.250 0.500 … … 0.125 0.250
    3 1/4 3.2500 0.250 0.500 … … 0.125 0.250
    3 1/2 3.5000 0.250 0.500 … … 0.125 0.250
    3 3/4 3.7500 0.250 0.500 … … 0.125 0.250
    4 4.0000 0.250 0.500 … … 0.125 0.250

    ASME B16.5 Pipe Flange Dimensions Length Tolerances (Inch)

    Range, LT Tolerances
    From ¾ through 2½ ±0.04
    Over 2½ through 4 ±0.08
    Over 4 through 8 ±0.10
    Over 8 through 16 ±0.12
    Over 16 ±0.18
